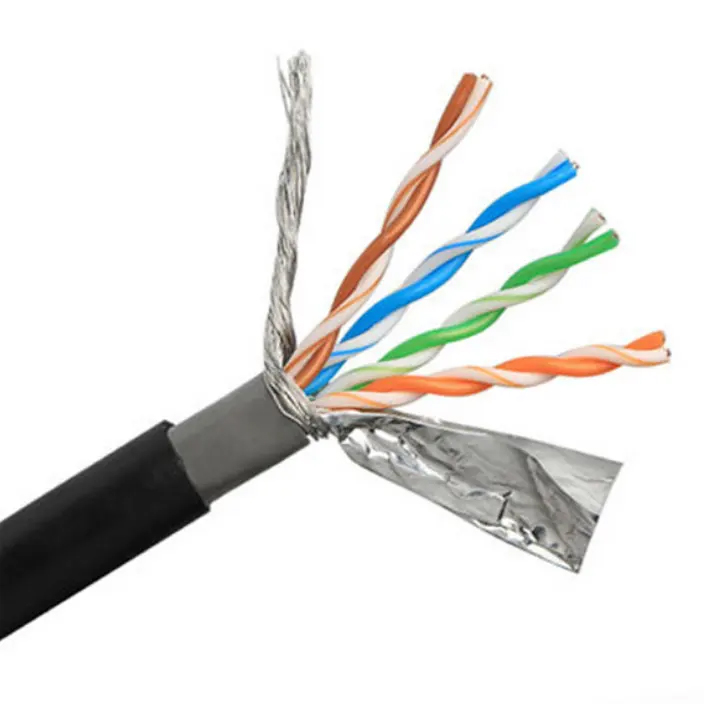

SFTP CAT 5E 4P- OUTDOOR LAN CABLE
Enquire about this product ↗Specification
1.Rated Temperature: -40°C ~ + 75°C
2.Wire Color Code:
Pair1:white/blue&blue
Pair2:white/orange&orange
Pair3:white/green&green
Pair4:white/brown&brown
3.Conductor: 26AWG or 24AWG Stranding ,Solid Bare copper
4.Insulation: HDPE
5.Drain Wire: 26AWG or 24AWG Stranding , Solid copper
6.Outer Shielded: AL-Mylar 100 %(min) coverage
7.Braiding: 48/64×0.12Al/CCA/BC
8.Jacket: double PVC ,LSZH jacket or inside PVC, outside PE jacket
9.Impedance: 100±15% Ω at 1 ~100MHz
10. Reference Standard: YD/T1019-2001,ANSI/TIA/EIA-568B,ISO/IEC11801
Cable assembly specification
|
Conductor |
Insulation |
Drain |
Shielded |
Outer Jacket |
Jacket |
||||||
|
AWG |
Specification mm |
Material |
Thickness (NOM.mm) |
Marerial |
Thickness (NOM.mm) |
OD (NOM.mm) |
Material |
Thickness (NOM.mm) |
OD (NOM.mm) |
||
|
24 |
1/0.511 |
HD-PE |
0.18 |
1/0.511TC |
AL/Mylar |
PE |
0.60 |
5.5 |
PVC |
0.60 |
6.8 |
|
26 |
1/0.404 |
HD-PE |
0.18 |
1/0.404TC |
AL/Mylar |
PE |
0.60 |
5.3 |
PVC |
0.60 |
6.6 |
