1/2″ Super Flex Feeder Cable
Enquire about this product ↗1/2″ Super Flex Feeder Cable Costruction:

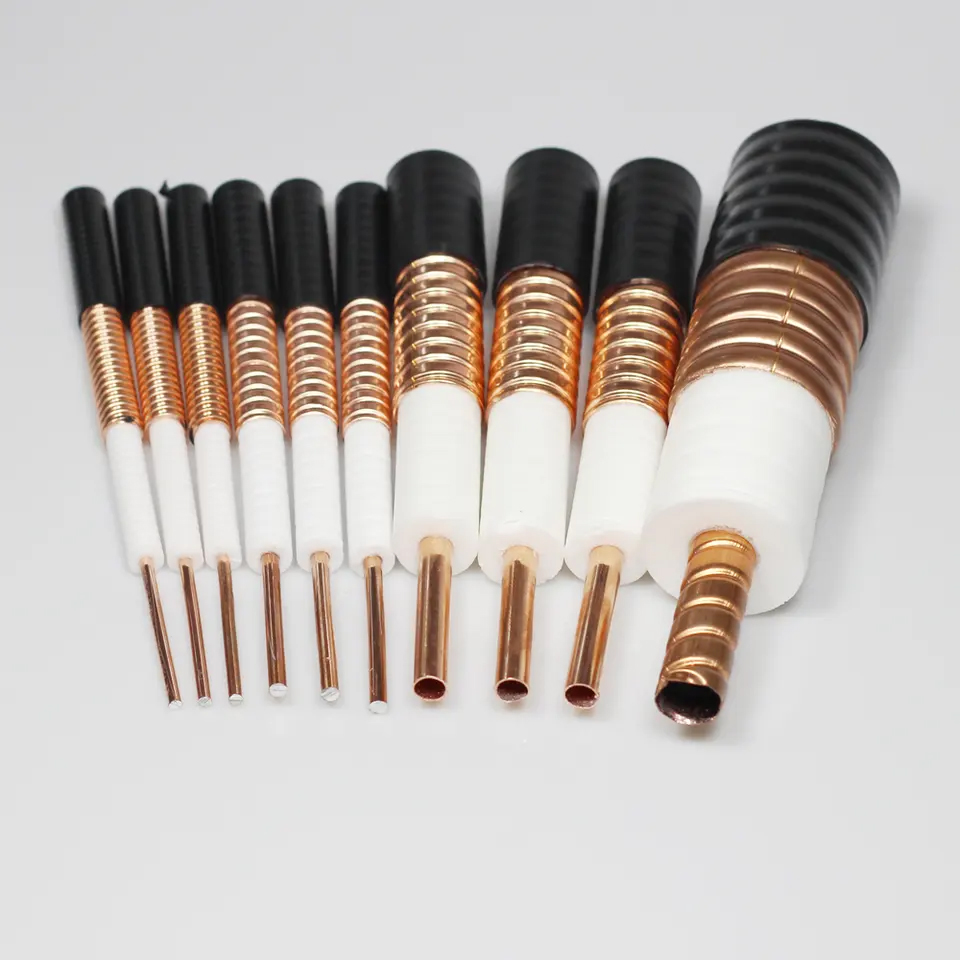

3.6mm Copper clad Aluminium+9.0mmFoamed PE+12.2mm Helicalcorrugated copper tube/Annular corrugated copper tube+13.6mm Polyethylene Jacket.
Ues to broadcast and television, microwave telecommunication, military, aerospace, vessel .
Specifications:
|
Type |
Characteristic Impendance(Ohm) |
Inner Conductor |
Insulation |
Outer Conductor |
Outer Sheath |
Attenuation at 900MHz |
Attenuation at 1800MHz |
|
1/4″ SF |
50 |
1.90 |
5.00 |
6.40 |
7.60 |
18.40 |
27.10 |
|
1/4″ |
50 |
2.60 |
6.00 |
7.70 |
8.90 |
13.10 |
19.10 |
|
3/8″ SF |
50 |
2.60 |
7.00 |
9.00 |
10.20 |
13.50 |
19.70 |
|
3/8″ |
50 |
3.10 |
8.00 |
9.50 |
11.10 |
10.90 |
16.00 |
|
1/2″ SF |
50 |
3.55 |
9.00 |
12.00 |
13.70 |
10.00 |
14.50 |
|
1/2″ |
50 |
4.80 |
12.00 |
13.90 |
16.00 |
7.15 |
10.52 |
|
5/8″ |
50 |
7.00 |
17.00 |
19.70 |
22.00 |
5.07 |
7.54 |
|
7/8″ F |
50 |
9.40 |
22.00 |
24.90 |
27.50 |
4.05 |
6.03 |
|
7/8″ SF |
50 |
9.40 |
22.00 |
24.90 |
27.50 |
4.30 |
6.30 |
|
7/8″ |
50 |
9.00 |
22.00 |
24.90 |
27.50 |
3.87 |
5.84 |
|
7/8″ Low Loss |
50 |
9.45 |
23.00 |
25.40 |
28.00 |
3.68 |
5.45 |
|
1-1/4″ |
50 |
|
|
|
|
|
|
