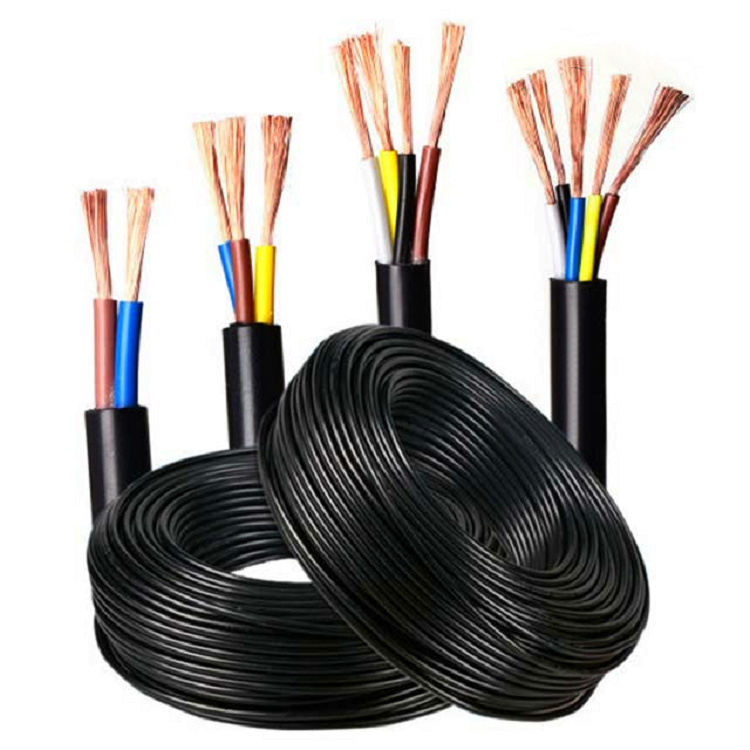

ELECTRIC CABLE (RVV)
Enquire about this product ↗Specifications
1.5*4mm2 RVV electrical cable
2.Free Sample
3.Certificate: CCC
4.Standard: GB5023-1997,JB8743-1998.
- Application
The products can be used for power,lighting or telecommunication equipment,household electric appliance,meter and instrument,etc.
- Voltages U0/U:
A. Uo/U is 450/750 and 300/500.
B. Long time working temperature of or below 70°C is required for all cables or wires,except Model No BV-90 that can stand temperature up to 90°C.
C. Temperature should be above 0°C when laying the cables or wires.
3. Specification Size and Technical Data
60227IEC 53 (RVV) ,RVV 300/500V
|
Nominal Cross-section mm² |
Insulation Nominal Thickness mm |
Sheath Outer Diameter mm |
Upper limit OfO.D mm |
Max.d.c, Resistance at20°C Ωkm |
Min.insula-tion Resistance At70°C MΩkm |
Recomm-ended Current Capacity [A] |
Product Approximate Weight Kg/km |
|
2×0.75 |
0.6 |
0.8 |
7.6 |
26 |
0.011 |
13 |
58 |
|
2×1 |
0.6 |
0.8 |
8.0 |
19.5 |
0.010 |
15 |
67 |
|
2×1.5 |
0.7 |
0.8 |
9.0 |
13.3 |
0.010 |
20 |
91 |
|
2×2.5 |
0.8 |
1 |
11.0 |
7.98 |
0.009 |
28 |
139 |
|
3×0.75 |
0.6 |
0.8 |
8.0 |
26 |
0.011 |
10 |
70 |
|
3×1 |
0.6 |
0.8 |
8.4 |
19.5 |
0.010 |
12 |
81 |
|
3×1.5 |
0.7 |
0.9 |
9.8 |
13.3 |
0.010 |
18 |
115 |
|
3×2.5 |
0.8 |
1 |
12.0 |
7.98 |
0.009 |
24 |
176 |
|
4×0.75 |
0.6 |
0.8 |
8.6 |
26 |
0.011 |
10 |
85 |
|
4×1 |
0.6 |
0.9 |
9.4 |
19.5 |
0.010 |
12 |
106 |
|
4×1.5 |
0.7 |
1 |
11.0 |
13.3 |
0.010 |
15 |
145 |
|
4×2.5 |
0.8 |
1.1 |
13.0 |
7.98 |
0.009 |
20 |
215 |
|
5×0.75 |
0.6 |
0.9 |
9.6 |
26 |
0.011 |
10 |
106 |
|
5×1 |
0.6 |
0.9 |
10.0 |
19.5 |
0.010 |
12 |
126 |
|
5×1.5 |
0.7 |
1.1 |
12.0 |
13.3 |
0.010 |
15 |
180 |
|
5×2.5 |
0.8 |
1.2 |
14.0 |
7.98 |
0.009 |
20 |
270 |
|
2×4 |
0.8 |
1.1 |
12.4 |
4.95 |
0.007 |
20 |
192 |
|
2×6 |
0.8 |
1.1 |
15.4 |
3.3 |
0.006 |
38 |
260 |
|
3×4 |
0.8 |
1.2 |
13.5 |
4.94 |
0.007 |
50 |
239 |
|
3×6 |
0.8 |
1.2 |
16.4 |
3.3 |
0.006 |
32 |
318 |
|
4×4 |
0.8 |
1.2 |
14.6 |
4.95 |
0.007 |
23 |
300 |
|
4×6 |
0.8 |
1.3 |
18.2 |
3.3 |
0.006 |
30 |
396 |
|
5×4 |
0.8 |
1.4 |
16.5 |
4.95 |
0.007 |
26 |
376 |
|
5×6 |
0.8 |
1.4 |
20.2 |
3.3 |
0.006 |
35 |
496 |
