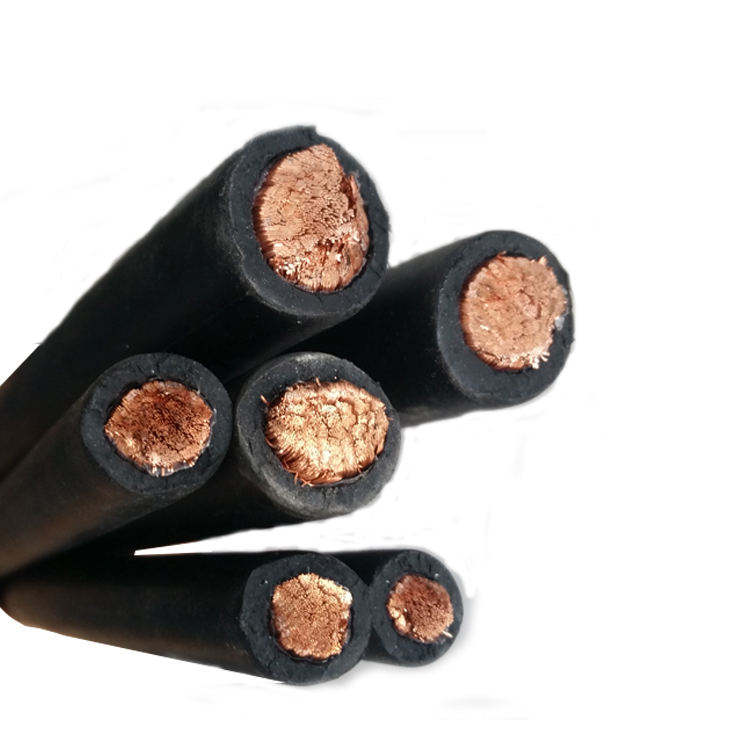

Rubber Insulated Welding Electric Cable

Packaging Detail:

100M/Coil, 500M/Coil, 1000M/Reel;

Delivery Detail:

10-20working days acc. to the order qty;

Application

This kind of cable is suitable for use in secondary earth welder as secondary earth wire for conductor earth colatages up to 200V AC and impulse coltage pead 400V PC, or for connecting electrode holder.

Operating Characteristcs

Continuous operating temperatrue: ≤60degree

Standard & description

TYPE

standard

245 IEC 81(YH)

GB5013.6-1997

TYPE

Description

245 IEC 81(YH)

Welding Cable, sheathed with natural rubber

245 IEC 81(YH)

Order

Item

Property

1

Conductor DC Resistance (Ω/km)

Reference the table followed

2

Power frequency AC voltange test

Immersed in water at room temperatrues for 1hour finished cable withstands 1000V AC.50Hz.For 5 minute without breakdown

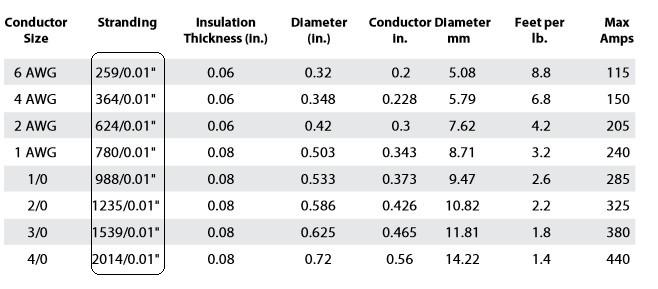

Specification

Nominal cross sectional area
(mm²)

The max. Diameter of conductor wire
(mm)

DC conductor reslstance at 20degree?(Ω/km)

Reference diameter
of conductor
(mm)

Insulaton nominal
thickness
(mm)

Overall diameter (mm)

Reference weight
(kg/km)

Untinned

Tinned

Min.

Max.

16

0.21

1.16

1.19

6.03

2.0

9.2

11.5

224

25

0.21

0.758

0.78

7.14

2.0

10.5

13.0

317

35

0.21

0.536

0.552

8.50

2.0

11.5

14.5

422

50

0.21

0.379

0.39

10.12

2.2

13.5

17.0

586

70

0.21

0.268

0.276

11.69

2.4

15.5

19.5

796

95

0.21

0.198

0.204

14.03

2.6

18.0

22.0

1060
