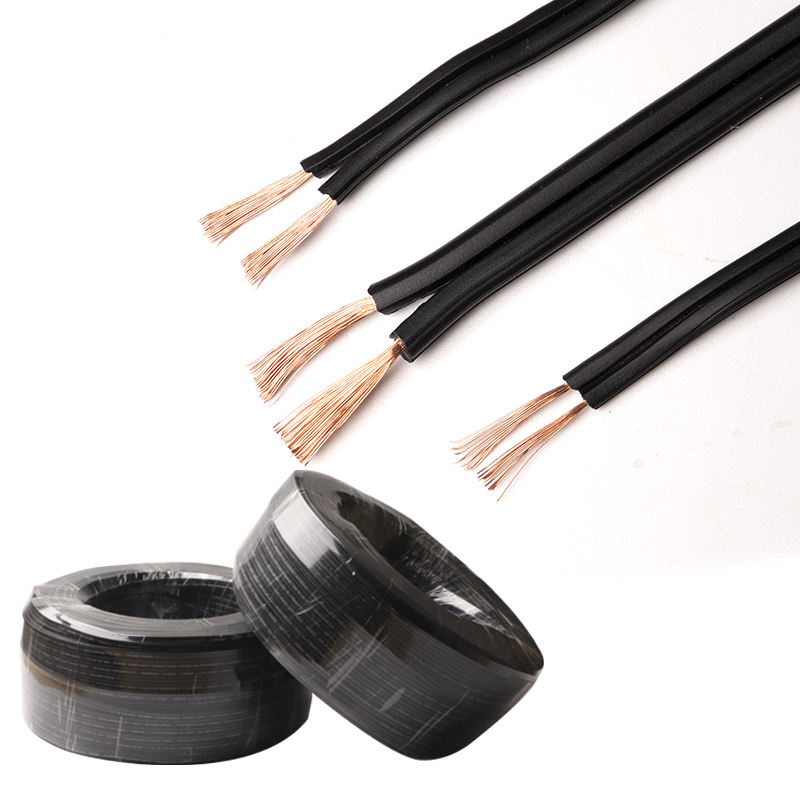

2X12AWG SPT Flat Electrical Cable
Enquire about this product ↗|
|
16 x 2c |
65/0.16 |
1.14 |
3.7 x 7.4 |
|
18 x 3c |
41/0.16 |
1.14 |
3.5 x 8.6 |
|
|
16 x 3c |
65/0.16 |
1.14 |
3.8 x 9.6 |
|
|
SPT-3 |
18 x 2c |
41/0.16 |
1.52 |
4.4 x 8.7 |
|
16 x 2c |
65/0.16 |
1.52 |
4.8 x 9.5 |
|
|
14 x 2c |
41/0.254 |
2.03 |
6.0 x 12.0 |
|
|
12 x 2c |
65/0.254 |
2.41 |
7.4 x14.0 |
|
|
10 x 2c |
105/0.254 |
2.79 |
9.1×18.2 |
|
|
18 x 3c |
41/0.16 |
1.52 |
4.4 x 10.7 |
|
|
16 x 3c |
65/0.16 |
1.52 |
4.8 x 11.8 |
|
|
14 x 3c |
41/0.254 |
2.03 |
6.0 x 14.5 |
|
|
12 x 3c |
65/0.254 |
2.41 |
7.4×16.5 |
|
|
10 x 3c |
105/0.254 |
2.79 |
9.1 x 18.8 |
SPT cable
USL, CNL: PVC insulated parallel cords, Type SPT-1, SPT-2 and SPT-3
SPT is always followed by a -1, -2 or -3, signifying insulation thickness for different applications.
TYPE SPT-1 LAMP CORD: 105°C 300V (UL/CSA)
Applications:
SPT-1 Lamp Cord is indended for use in household appliances, including clocks, lamps, radios and fans.
Conductors:
Annealed, bunch stranded copper per UL 62
Insulation:
Polyvinylchoride (PVC) per UL 62
SPT-1 Lamp Cord Features:
Resist Oils, Water, Acids, Alkalies, Ozone
SPT Paralleled Cable
1.We are Cable Factory
2.UL Approval
3.Passed UL VW-1 & CSA FT2 test
4.Stranded copper/CCA conductor
5.PVC insulation
|
Application: The cables are used as connecting line or inner wiring in power installation, household appliances, electric tools, machines etc. Type: SPT-1 : Thermoplastic, parallel-jacketed, light duty cord use in damp locations, 300V SPT-2 : Same as SPT-1, but heavier construction, 300V SPT-3 : Same as SPT-2, but heavier construction, 300V
|
||||
|
Reference Standard: UL 62 approved |
Rated Voltage: 300V |
Rated Temperature: 60°C –105°C |
||
|
Conductor: Stranded Bare Copper/copper clad Aluminum (CCA) |
Insulation : PVC |
|||
|
|
AWG/No.of cores |
NO./Normal Diameter of strand(mm) |
Normal Thickness of Insulation(mm) |
Over Diameter of Cable(mm) |
|
SPT-1 |
20 x 2c |
21/0.18 |
0.78 |
2.55 x 5.1 |
|
18 x 2c |
41/0.16 |
0.76 |
2.7 x 5.4 |
|
|
18 x 3c |
41/0.16 |
0.76 |
2.7 x 8.0 |
|
|
SPT-2 |
18 x 2c |
41/0.16 |
1.14 |
3.4 x 6.8 |
