Speaker cable
Enquire about this product ↗Packaging & Delivery
|
Packaging Detail: |
Plastic film/ spool / Carton / OEM 100m/roll, 200m/roll,,,, 300m/roll |
|
Delivery Detail: |
About 15-20 days after payment |
Specifications
transparent Speaker cable Red and Black cable
1. CE, ROHS, ISO
2. High performance
3. Factory price
4. OEM

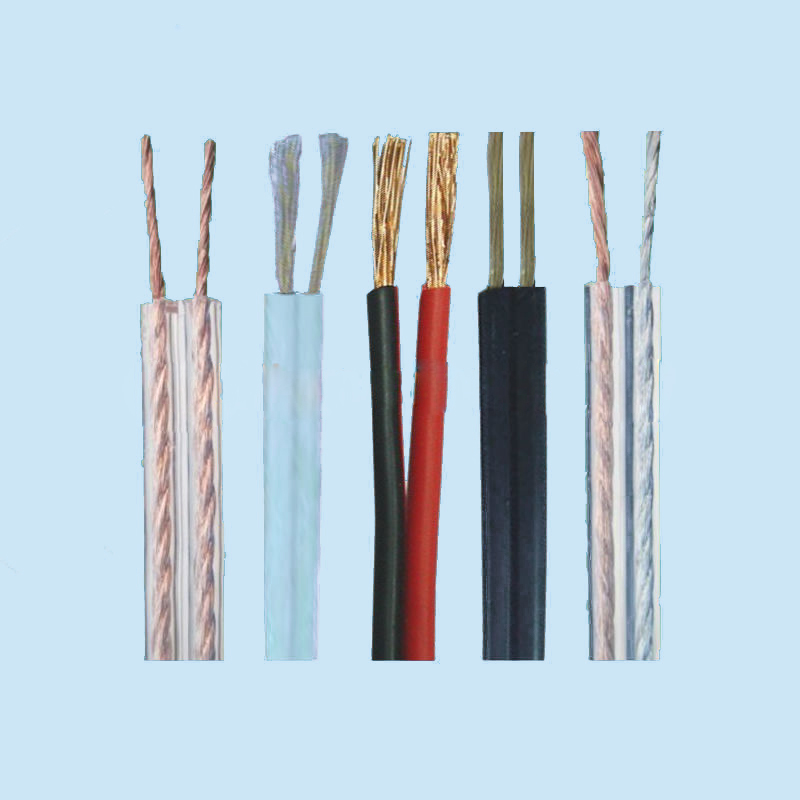

Transparent Speaker cable / Red and Black cable speaker cable / RB Cable
RVB series flat PVC insulated (loudspeaker line)
1. Application:
Using to connect power amplifier and loudspeaker equipment, broadcast system to transmit audio frequency signal, which is magnified by power amplifier.
2. Characteristic:
It can be matched with sound equipment of over high frequency and over low frequency to reach a perfect sound effect, keeping stable for the leaving rhyme and strength of diapason and music. It’s fine and diversified in form.
3. Instructions:
a) Multiple strands of copper line twisted as conductor
b) Transparent PVC insulation / Red and Black PVC Insulation / Black PVC Insulation
) Rated voltage: Uo/U is 300/300V
d) Keeping working temperature under 70°C for long-range operation
4. Technical parameter:
|
Cross section |
Reference models |
nsulation Nom.O.D MM |
|
12 AWG |
2*3.31 MM2 |
5.8*11.6 |
|
14 AWG |
2*2.08 MM2 |
4.6*9.2 |
|
16 AWG |
2*1.31 MM2 |
4.1*8.2 |
|
18 AWG |
2*0.82 MM2 |
3.6*7.2 |
|
20 AWG |
2*0.52 MM2 |
3.4*6.8 |
|
22 AWG |
2*0.33 MM2 |
3*6 |
|
24 AWG |
2*0.21 MM2 |
2.8*5.6 |
