HYV INDOOR TELEPHONE CABLE 10 P

HYV INDOOR TELEPHONE CABLE 10 P

Specifications

10pair HYV indoor cable telephone internet
conductor:bare copper
Insulation:HDPE
sheath:PVC or LSZH

10pair HYV indoor cable telephone internet

HYA-outdoor cable

HYAT-jelly filled underground cable

HYATC -jelly tilled aerial cable







Application:



voice calls, 2 ~ 10M broadband network, building intelligent video intercom and security monitoring transmissions.



suitable occasions: waterproof, anti-aging, indoor, tube wells, anti-cold occasion.



Working temperature: -30 ~ 60 °C

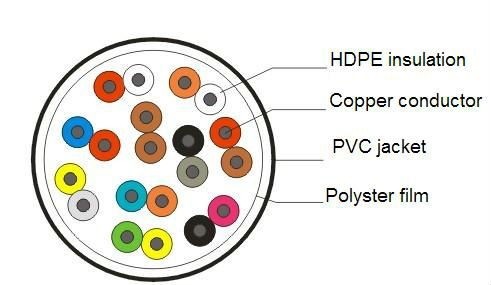

Cable construction:



Insulation requirements: color does not fade, does not migrate, mechanical and physical properties meet the standard and requirements of GB/T13849.1-93



Twisted pair color and arrangement in sequence:



Pair color Number	Conductor A	Conductor B
1	white	Blue
2	White	Orange
3	White	Green
4	White	Brown
5	white	Grey
6	red	Blue
7	red	Orange
8	red	Green
9	red	Brown
10	red	Grey



Cable core structure: the same core type or SZ type

Cable core binding tape: Non-hygroscopic impermeable high strength polyester film, comply with provisions of YD / T 322-1996

Jacket

Material: PVC special for cable sheathing,grey color

Sheath minimum thickness: 1.2mm

Cable Net weight: 0.095kg / m

Ripcord:

does not absorb moisture, not oil, continuously throughout the entire cable, strong enough to open the cable.

Finished cable electrical performance: Conforms to standard YD / T 322-1996 .

The length of the cable manufacturing: 305m, 500m, 1000m, 2000m

Packing size: 305m-60 * 40cm, 500m-70 * 40cm, 1000m-80 * 50cm, 2000 m-100*70cm

Packing mode: wooden drum + bubble film+ kraft paper+ batten + steel tape sealing

cable head: ends of the cable are sealed with end cap.

Cable end A :mark with red flag , cable end B: mark with green flag

Cable diameter: 9.2 mm
